Generating Static Previews

Roman archiving requires static preview images for viewing and selecting images, with the following requirements for each ImageModel:

1080p x 1080p preview image
300p x 300p thumbnail image
output as PNG files
90th percentile linear histogram stretch
using afmhot colormap
overlay indicating orientation

The roman_static_preview script creates downsampled images from ASDF files containing an ImageModel, with an optional compass rose overlaid onto the image indicating orientation.

Installation

The requirements for this script are not installed by default as part of romancal; install with the sdp extra to include them.

pip install "romancal[sdp]"

Usage

roman_static_preview includes two convenience commands, preview and thumbnail, that set default options to the static preview requirements.

❯ roman_static_preview input.asdf output.png preview --help
usage: roman_static_preview INPUT OUTPUT preview [-h] [--no-compass] SHAPE [SHAPE ...]

positional arguments:
  SHAPE         desired pixel shape of output image

options:
  -h, --help    show this help message and exit
  --no-compass  do not draw a north arrow on the image

❯ roman_static_preview thumbnail --help
usage: roman_static_preview INPUT OUTPUT thumbnail [-h] [--compass] SHAPE [SHAPE ...]

positional arguments:
  SHAPE       desired pixel shape of output image

options:
  -h, --help  show this help message and exit
  --compass   draw a north arrow on the image

Examples

roman_static_preview r0000501001001001001_0001_wfi01_cal.asdf r0000501001001001001_0001_wfi01_cal.png preview 400 400

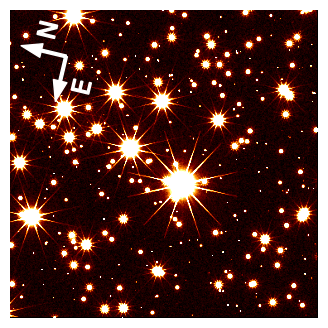

preview of Roman imagery, with compass rose showing orientation

roman_static_preview r0000501001001001001_0001_wfi01_cal.asdf r0000501001001001001_0001_wfi01_cal_thumb.png thumbnail

thumbnail of Roman imagery

using `stpreview` directly

The roman_static_preview script is merely a wrapper over stpreview INPUT OUTPUT to SHAPE, filling in defaults for previews and thumbnails. stpreview offers the to and by commands (for resampling to a desired image shape, or by a desired factor, respectively). Refer to its documentation for usage instructions.
